antenna

Gain-Master™ is a 0.625λ high tech fiberglass
base station antenna for wide band antenna from 10m to 12m* amateur band

completely designed by electromagnetic simulation to achieve the maximum gain and optimize the radiation pattern and bandwidth.

Engineered with the most advanced available technologies it is completly manufactured in Italy with high quality materials.

The new design of the radiant element (Patent Pending) works like a central feeded dipole so all RF currents on the radiator are in-phase and the ground plane radials are not necessary.

The coaxial coil at the bottom works like RF-choke for the optimum decoupling from mast and feeding line.

Made of telescopic fiberglass tubes, it is DC-grounded for the best protection from static discharges.

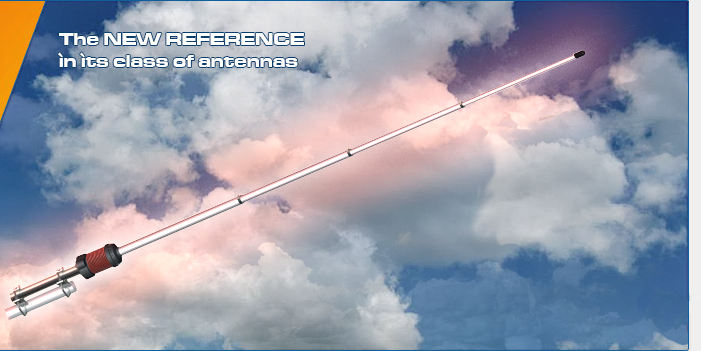

Gain-Master™ is the new reference standard in its class of antennas.

*12m band covered with manual or automatic antenna tuner.

Gain Master Vs. Conventional 5/8λ

vs conventional

Why Gain-Master™ has better performance compared to a conventional 5/8λ

Gain-Master™ has the highest available gain for 5/8λ antenna and due to its angle of radiation perfectly horizontal, can improve performance, better than competing antennas, at least 1-2dB, corresponding to 26%-58% more gain...

Read all

Technical Data

Type 0.625 λ center feeded vertical dipole
Frequency Range
@ SWR ≤ 2.0
25.5 - 30 MHz wide band from 10m to 12m* ham band
Impedance 50 Ω
Radiation Omnidirectional
Polarization Linear Vertical
Max Gain on the horizon 1 to 2 dB higher than conventional 5/8 λ
Max Power 500 Watts (CW) continuous, 1000 Watts (CW) short time
Ligthning protection All metal parts are
DC grounded, the inner conductor shows a DC-short

Read all
Engineering

engineering detail

Completely computer designed, it's made and assembled entirely in Italy with the finest materials available, starting from the whip which is carried out in four sections of 1.92m telescopic tubes with triple-layer fibreglass; it makes Gain-Master™ much more durable and rigid then the competitors.

Read all
